Top 10 Best Diodes for Bridge Rectifier

Modern electrical components must store power signals and currents. When AC currents are sent to a component, they cannot be stored until they are converted into DC currents. Once an electronic device has DC current, it can be stored accordingly. The only way the current can be converted is through the use of rectifiers.

A bridge rectifier is a circuit designed to convert an alternating current into a direct current (AC to DC). In electronics terms, you would connect an AC plug adapter into an electronic device. The bridge rectifier within the device would convert the AC power into DC power for its other components.

The conversion depends on diodes to be positioned in the configuration of the bridge circuit. The typical bridge rectifier has at least four diodes, but some have more than four diodes. The most commonly used diodes are made of silicon material. It is a heat resistant material that is used to make several computer components and devices.

Do you need to find the best diodes for your bridge rectifier? Most people wouldn’t know where to start looking for high-quality diodes. However, there are many suitable diodes out there made by reputable manufacturers and brands.

Best Diodes for Bridge Rectifier

To help you get started, we’ve compiled a list of the top 10 best diodes for bridge rectifiers.

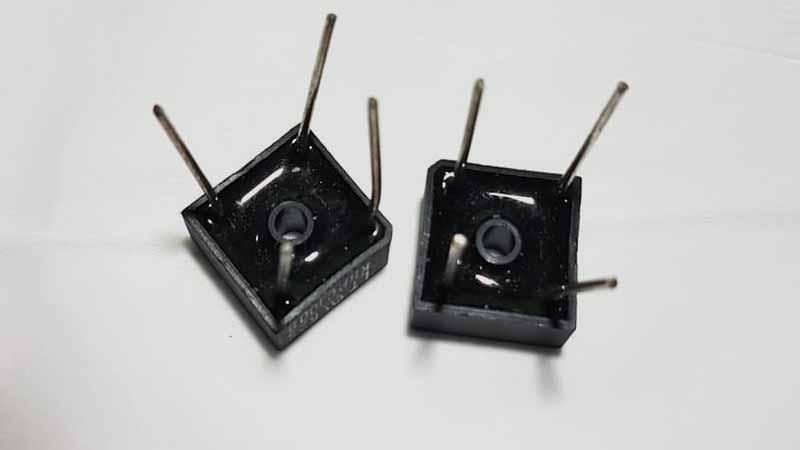

1) Chanzon KBPC5010 Bridge Rectifier Diode

The Chanzon KBPC5010 Bridge Rectifier Diode comes in a package of two pieces. The maximum repetitive peak reverse voltage is 1,000 volts, with a 50A Forward Current. The components are lead-free and compliant with the Restriction of Hazardous Substances Directive. That means it is a safe component to use in your electronics without any hazardous materials in the mix.

The high forward surge current compatibility gives you even more protection for high-temperature soldering. It is common when working on electronic devices. The pieces come with an ESD bag and main specifications label to ensure that you understand the components’ maximum ratings and thermal characteristics.

According to the specification sheet’s mechanical data, the diode pieces have metal casing to protect their internal components. The terminals are 0.25” Plated Faston. The weight is 31.6 grams or 1.116 ounces. The mounting torque has a maximum of 20 inch-pounds.

2) Yoosoo 10pcs Single Phase Diode Bridge Rectifiers KBPC5010

The Yoosoo Single Phase Diode Bridge Rectifiers are some of the highest quality rectifiers on the market. If you need to convert AC input to DC output, you’ve found the right product. The set gives you approximately ten bridge rectifier pieces in total. You can use them for all kinds of DIY electronic projects.

The upperparts and internal parts are welded thoroughly and professionally. Because of this, you’ll find the performance to be much more stable. Even though the base is small, the rectifiers have a huge overcurrent capacity, low voltage drop and good heat dissipation.

Many people require these kinds of high-frequency, high power bridge rectifier diodes whenever they work with power supplies. The dimensions of the diodes are 28mm x 28mm x 22.5mm. It is just the right size for most applications.

3) SP Bridge Rectifier

The SP Bridge Rectifier 200A is a high-quality bridge rectifier with good welding, good temperature cycling capabilities, power cycling capabilities, and performance stability. The output current specification is 300A repeated peak reverse voltage, 1600-volt repeated peak reverse current, and 10mA Isolation Voltage.

Many DIY electronic hobbyists use the SP Bridge Rectifier because it is the best for single-phase rectification. Not only that, but its awesome heat dissipation, reduced pressure and large overcurrent capacity make it a high-power bridge rectifier. That is why they work wonderfully in power supplies.

The manufacturer goes out of its way to ensure that customers are satisfied. Even though their bridge rectifiers cost somewhat more than other rectifiers on the market, they claim it is due to their product’s quality and accuracy. And to make sure you have confidence in their rectifiers, they offer a 100% money-back guarantee if the product turns out to be of low quality or unsatisfying to the consumer.

4) Bridgold 5pcs KBPC5010 Bridge Rectifier Diode

The Bridgold KBPC5010 Bridge Rectifier Diode is a superior quality electronics component that is lead-free and compliant with Hazardous Substances Directive Restriction. Its electrically isolated metal casing offers maximum heat dissipation for long-term use and wide-range compatibility. The terminal isolation voltage is approximately 2,500 volts max.

As a result, you’ll experience low reverse leakage current and low power loss with these diodes. The set comes with five silicone diode pieces with 4-pin through holes requiring #10 screws to mount them. The total weight is 2.4 ounces. The dimensions are 6.33” x 3.9” x 1.3”.

They are certainly some of the cheaper bridge rectifier diodes on the market. However, their low cost does not diminish the quality whatsoever. These diodes will still give you everything you need for a single-phase rectifier. The maximum operating temperature is 150°C.

5) HiLetgo 10pcs KBPC5010 Diode Bridge Rectifier

The HiLetgo KBPC5010 Diode Bridge Rectifier Diode comes in a set of 10 diode pieces. It is more than enough pieces for any electronics project. The best part is that you get 10 diodes at an average of less than $1 each. There is nothing bad to say about the product because it offers a high-quality performance at a low price. You probably won’t find a good deal like this anywhere else.

HiLetgo is an electronics components brand that comes from Shenzhen, China. They have turned into one of the biggest suppliers of electronics components in the world. Some of their most commonly manufactured components include power and drive modules, breadboards, sensors, jumper wires, connectors, and robot parts.

6) Bridgold 5pcs KBPC1010 Bridge Rectifier Diode

The Bridgold KBPC1010 Bridge Rectifier Diode set comes with five diode pieces. These are full-wave electronic silicone diodes with four pins and a PRV rating of 1,000 volts. However, the isolation voltage from the case to the terminal is 2,500 volts. The metal case is electrically isolated for maximum heat dissipation.

The benefits of the Bridgold KBPC1010 include low reverse leakage current, high efficiency and low power loss. It is perfect for small electronics and tube amp filament lines. If you need to convert an AC with low voltage, such as 12 or 24 volts, to DC with the same amount of voltage, you can do so with these diodes.

The Bridgold KBPC1010 diodes have a 5-star rating on Amazon. They are one of the few diodes sets to have a perfect score. It must be due to the low price and high-quality product combination. Bridgold might not be the most popular brand, but they certainly know how to make customers happy. You will undoubtedly be happy with their product too.

7) Hilitand AC to DC Diode Bridge Rectifier SQL100A

The Hilitand AC to DC Diode Bridge Rectifier is a three-phase diode bridge rectifier with a maximum average forward current of 100A. It is a high-quality full bridge rectifier that does a good job of converting AC input to DC output because of its stable performance.

The stability can be attributed to the durable black casing and structure of the component. It allows for fantastic temperature and power cycle abilities. The temperature can be between -40℃ and 160℃. This temperature range should be more than adequate for your DIY electronics project.

If you’re looking for a top-notch AC to DC diode bridge rectifier with a huge overcurrent capacity and excellent heat dissipation, then you’ve found the perfect rectifier for your needs. It is best used as a high-power bridge certifier for power supplies. The item weight is approximately 8.4 ounces. The AC/DC input and output voltage is 1,600 volts at its positive peak voltage.

8) Acogedor 400A 1600V Single-Phase Diode Bridge Rectifier

The Acogedor 400A Single-Phase Diode Bridge Rectifier is an input rectification power supply offering a DC power current for equipment or other electronic instruments. The scope of the application includes an input rectification power supply of PWM inverter, input and rectification of a switching power supply, DC motor excitation power supply, soft start capacitor charging, inverter welding machine, electrical drag and auxiliary current, and current charging for a DC power supply.

The rectifier has an exceptionally welded structure with wonderful power cycling ability and temperature cycling ability. These attributes ensure that your diode bridge rectifier will provide a highly stable performance. You’ll also experience low voltage drop, huge overcurrent capacity, and strong heat dissipation.

Other important specifications include an output current of 400A, repetitive peak reverse voltage of 1,600V, and repetitive peak inverse current 10mA. The size dimensions are 110mm x 68mm x 34mm.

9) Wallfront 1pc Single Phase Rectifier Module Rectifier Diode

The Wallfront Single Phase Rectifier is another premium quality bridge rectifier with a decent welded structure and impressive temperature and power cycling ability. All of these attributes create the kind of stable performance you’d want to see in your single-phase rectifier diodes. The low voltage drops, huge overcurrent capacity, and quality heat dissipation make this a worthy component.

Do you need a high-powered bridge rectifier with a wide range of usage for your power supply? If so, you won’t need to look any further. This rectifier gives you everything that you’ll need for your DIY project and so much more. The dimension are 110mm x 68mm x 34mm.

Other specifications of the component include an output current of 400A, single-phase input positive current of 135A (average), repetitive peak reverse voltage of 1,600 volts, repetitive peak inverse current of 10mA, insolation voltage of 2,500 VAC, ITM of 400A, VTM of 1.5 volts, 4 terminals and a maximum junction temperature of 150℃.

10) Nikou Bridge Rectifier – Single-Phase Diode Bridge Rectifier

The Nikou Bridge Rectifier is a single-phase diode bridge rectifier with an output DC current capability of 150 amps. It offers a huge overcurrent capacity, low voltage drop, decent heat dissipation, and wonderful power cycling and temperature abilities. It will give you the kind of stable performance you would expect in a bridge rectifier diode.

Other important specifications to consider include 50 amps for the three-phase input positive current average, 1,600 volts for the repetitive peak reverse voltage, 10mA for the repetitive peak inverse current, 2,500VAC for the isolation voltage, 1.5 volts of VTM, 150 amps for the ITM, and four terminals. The maximum junction temperature allowed is 150℃. The size dimensions are 78mm x 40mm x 35mm.

Read also:

Conclusion

You can expect to use silicon diodes with bridge rectifiers. The voltage drop will be at least 1.2 volts, but it will gradually increase over time as the current increases. The maximum voltage output can happen with at least 1.2 volts from the AC input peak voltage.

The diodes featured in the list above are for single-phase bridge rectifiers. These rectifiers normally require four diodes to convert AC current into DC current. If you were to use a three-phrase rectifier, it would require six diodes rather than four diodes. It all depends on the particular project you had in mind.

Digital devices must have constant voltages to remain stable. You won’t get constant voltage with AC power alone because then it would be unstable. You can only achieve stability after the AC is converted into DC. That is why power supplies are the most common devices to have bridge rectifiers and diodes in them.
